STALKER CABLE AND PIPE LOCATOR

STALKER cable and pipe locators provide quick and precise search of power cables and pipelines, insulation faults tracing and depth measurement with subsequent mapping.

Comparative characteristics of line locators «Stalker» series

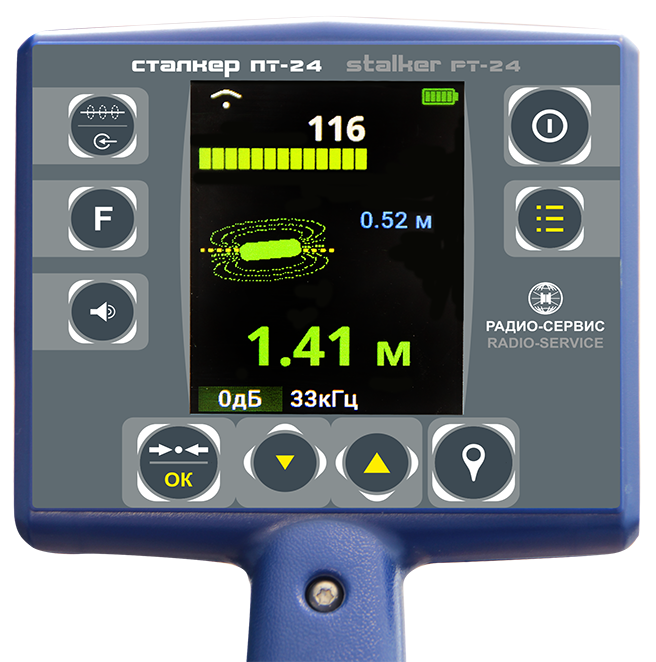

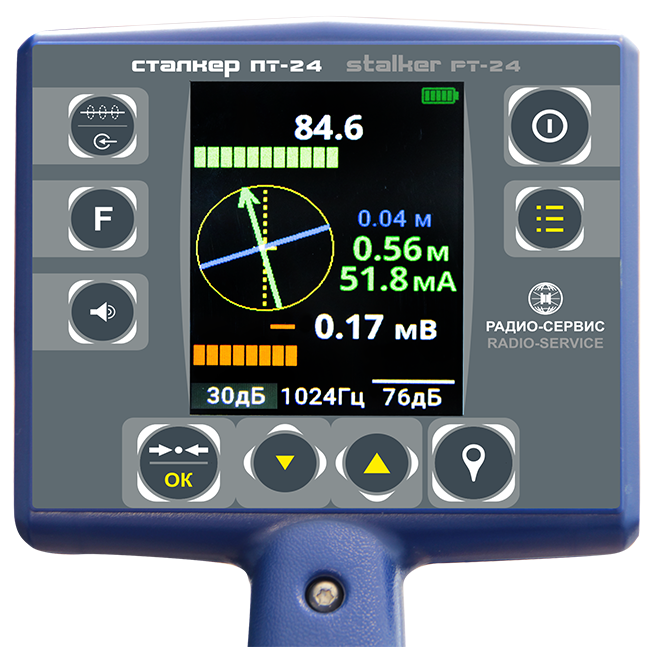

PT-24 LOCATOR

Download Manual for PT-24
Key features:
  • Tracing of insulation faults in cables and pipelines both with and without transmitter picking up power line frequency signals (50 Hz,60 Hz) or signals of cathodic protection (CP “100 Hz” or “300 Hz”);
  • Continuous indication of target utility depth and current;
  • Three location modes: sharp peak, broad peak and null;
  • Indication of current direction (from transmitter / to transmitter) allows avoiding tracing of non-target utility;
  • Simultaneous indication of two utilities:
    • the first arrow indicates the target utility with applied signal from transmitter;
    • the second line indicates an energized power cable or pipeline under cathodic protection;
  • Enlarged and bright display;
  • Power supply from one or two storage batteries;
  • GPS positioning and mapping;
  • Wireless PC connection (Bluetooth).







The locator in «SONDE» mode detects transmitting sondes and inspection pipe cameras equipped with built-in autonomous transmitter.







PT-14 LOCATOR

Download Manual for PT-14

Key features:

  • Simultaneous indication of utility depth and current
  • Three tracing modes: sharp peak, broad peak and null;
  • Indication of current direction (from transmitter / to transmitter) allows avoiding tracing of non-target utility;
  • Passive frequencies facilitate locating without Transmitter;
  • On the «50 Hz» and «550 Hz» frequencies the Locator locates cables by detection Power signals naturally occurred on the utilities;
  • On the «100 Hz» and «300 Hz» frequencies the Locator locates utilities and finds areas of damaged insulation of pipes by detecting the Cathodic Protection signals;
  • In the «SB» (sound band) mode the Locator locates utilities by re-radiated broadcasting and telephone signals within the frequency band from 48 Hz to 14 kHz;
  • In the «RADIO» mode the Locator locates utilities by re-radiated broadcasting signals within the frequency band from 10 kHz to 36 kHz;
  • The locator can be connected with GPS logger for subsequent utility mapping.

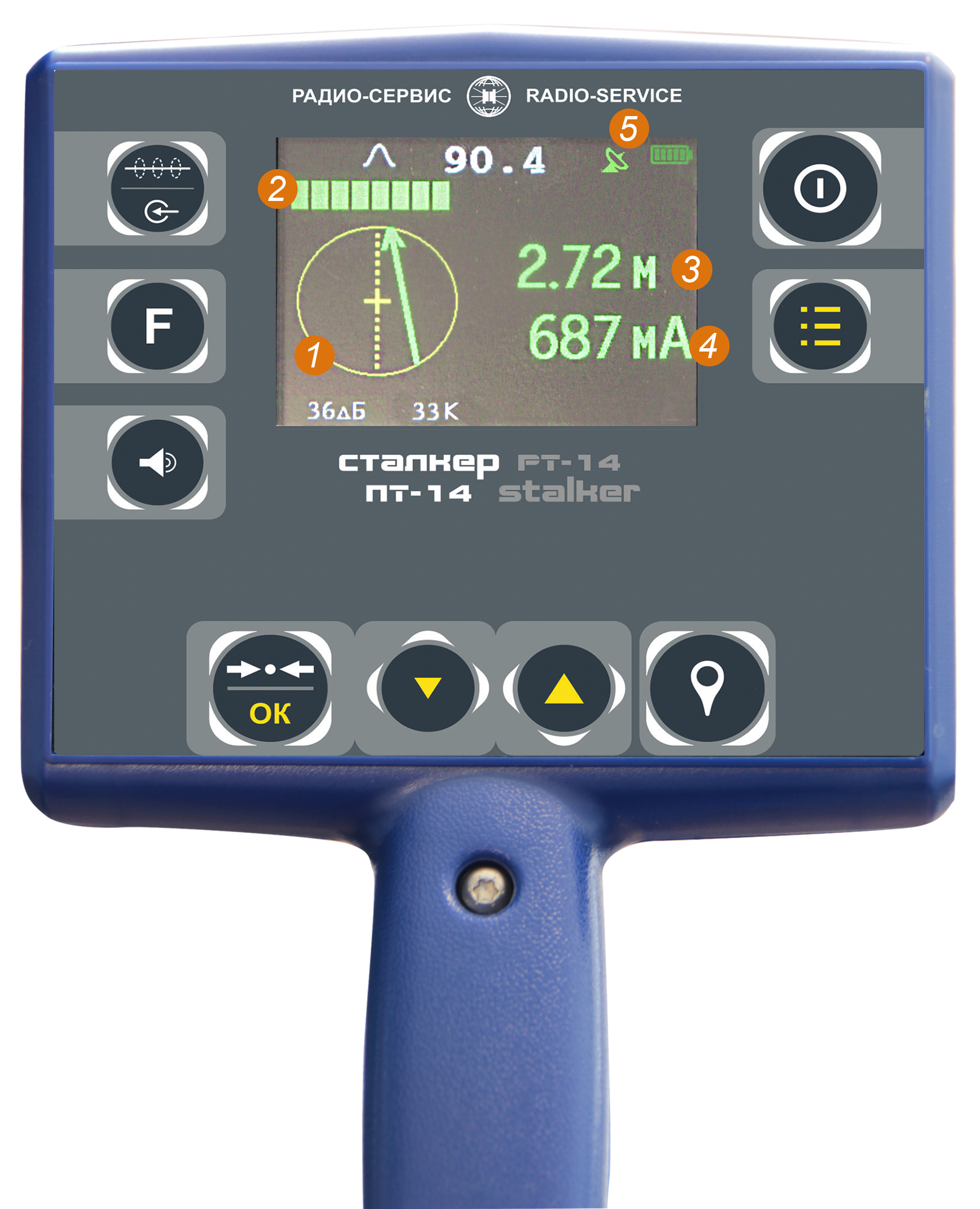

 1. COMPASS pointer indicates position of a target utility


  2. Signal strength
  3. Utility depth
  4. Utility current
  5.  Indication of GPS connection for subsequent mapping.

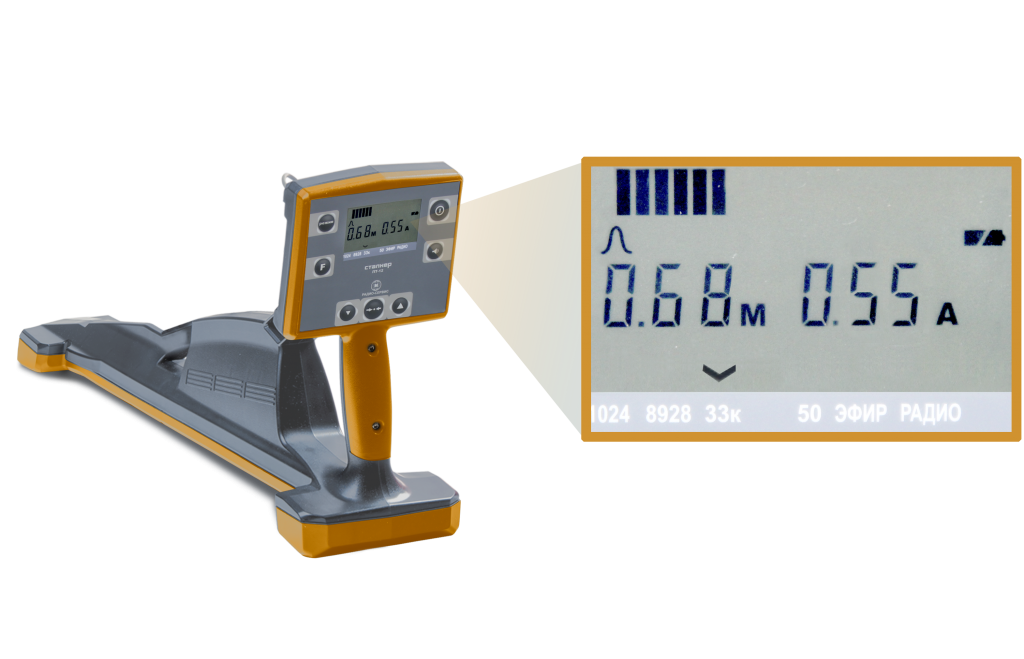

PT-12 LOCATOR

                            ПТ-12_с дисплеем.png
Key features:
  • LCD with extra lighting
  • Continuous indication of utility depth and current;
  • Three tracing modes: sharp peak, broad peak and null;
  • Indication of current direction (from transmitter / towards transmitter);
  • Lightweight, shockproof and splashproof casing;
  • Sound signal changes its tone depending on operator's position relative to target utility.

GT-15 TRANSMITTER

Download Manual for GT-15

Features:

  • Light-weight and compact design;
  • Power up to 10 W;
  • Indication of voltage and output current to evaluate quality of connection to the target line;

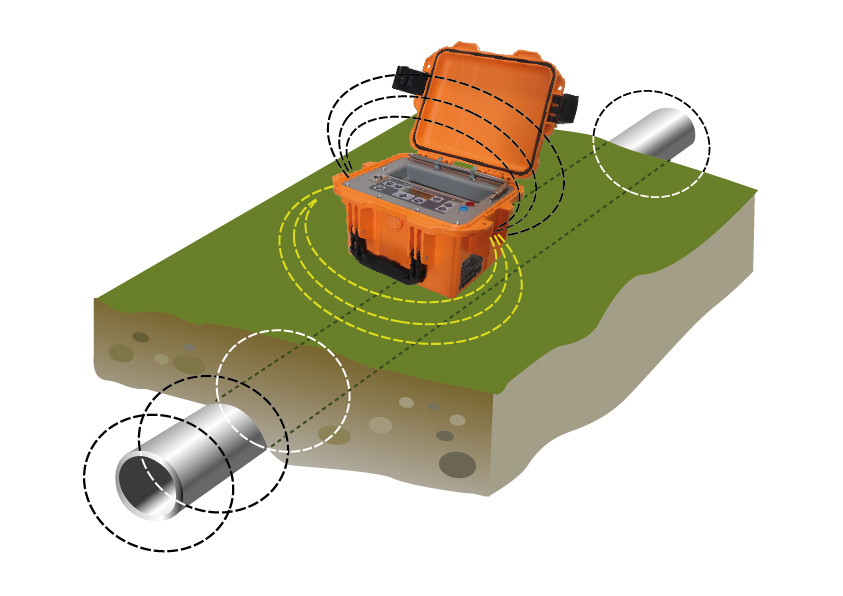

  • Built-in inductor induces signal of 33 kHz to the target line when direct connection is impossible;
  • Two operation modes, continuous and pulse induction, facilitate high selectivity in case of weak signal, and save batteries charge;
  • Non-contact application of searching signal of 1 kHz to 9 kHz to the target line using the KI-50 clamps.

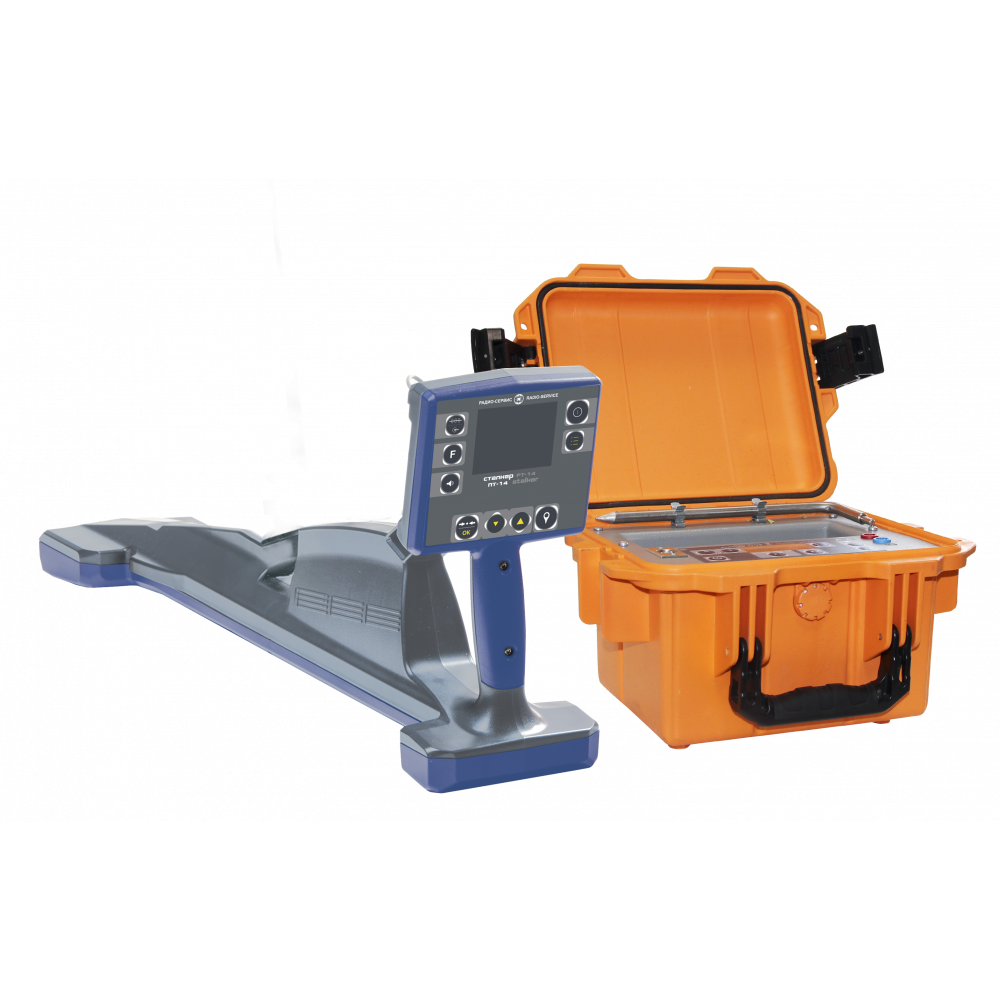

The Cable and Pipe Locating Complex STALKER 15-14 consists of the GT-15 Transmitter and PT-14 Locator.


Locating areas of damaged insulation

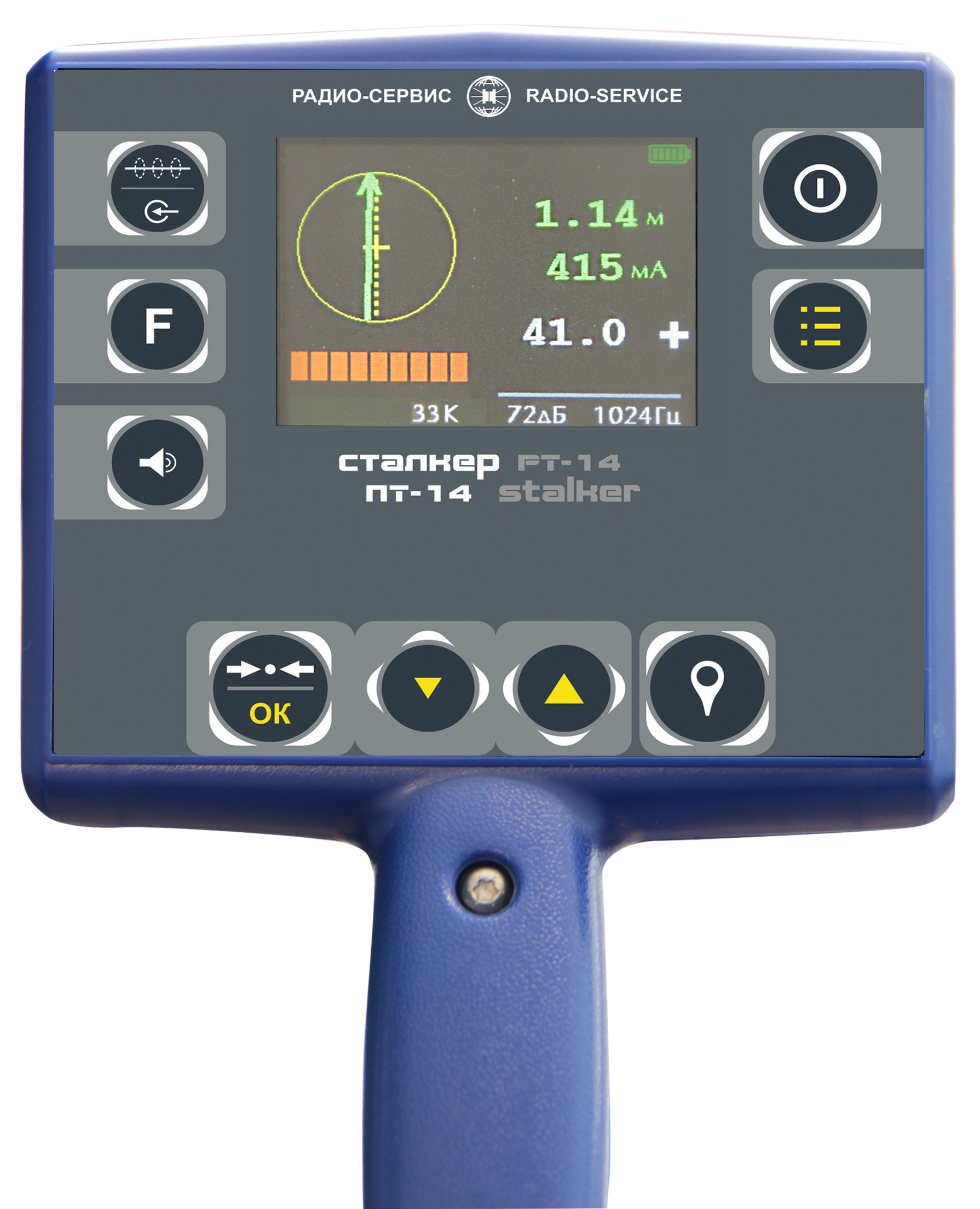

MODE «TRACE-SENSOR»
1. SENSOR bar graph is used to locate areas of faulty insulation;
2. Inversion of the test signal polarity on the Locator display gives evidence of the insulation damage. This is also confirmed with changed signal on the SENSOR scale
3. Insulation control sensors as A-frame, DKI-E, DKI-02 facilitate insulation faults tracing in the different soils.


GT-75 TRANSMITTER

Download Manual for GT-75

Key features:

  • Power up to 75 W;
  • Sine-shaped output signal eliminates interferences induced to the equipment;
  • Indication of voltage and output current to evaluate quality of connection to the target line;
  • Automatic load matching;
  • Power supply is either from built-in rechargeable batteries or from external power source of 12 V or 220 V.

Magnet can be attached to metallic pipes and provides convenient connection between  GT-75 Transmitter and pipeline.

The Cable and Pipe Locating Complex STALKER 75-14 consists of the GT-75 Transmitter and PT-14 Locator.

Data storage

You may store the following parameters in the Locator memory:

  • Strength of signals from magnetic antennas and at the SENSOR input;
  • Direction to utility;
  • Depth and current readout;
  • Direction of tracing current;
  • Relative polarity of electric potential at the SENSOR input;
  • Signal phases at the TRACE input;
  • Operating frequencies;
  • Local time and date at the moment of readings through GPS;
  • Target point coordinates obtained through the GPS.

Stalker Terminal

Stalker Terminal is a special software for data transferring from locator to PC, utility mapping and data analysis.

Download Stalker Terminal

Specification



Locator

               PT-24                  PT 14        PT-12
Active frequencies, Hz
273, 526, 1024, 8928, 32768 (33 k) 491, 512,982, 2000, 2048, 8440, 9828, 10000
    1024, 8928, 32768 (33 k)
Passive frequencies, Hz       50, 100, 300, 550, 1450, “RADIO” ,“SB”
 50, ¨"RADIO", "SB"
Bandwidth in Radio mode                                               10 kHz - 36 kHz
Bandwidth in SB mode
                                               48 Hz - 14 kHz
Wireless PC connection                                               yes
     no
Wireless connection to GPS logger
                                             yes
     no
Memory, results                                           10 000      no
Indication of utility depth and current            At all operating frequencies except for "Radio" and "SB"
 Compass line                                              yes  no
Simultaneous indication of target and neighboring utility                  yes                                        no
 Sharp peak mode                                                    yes
"Zoom" option                                          yes  no
Sonde locating                 yes                       no  no
 Depth measurement, m                                                      up to 6
 Display, mm           col., 55 x 75               col., 60 x 45    b/2, 60 x 32
 Depth measurement   accuracy, %                                                             5
 Weight, kg                   1.9                                 1.7
 Protection degree, IP                                                             54
 Operating temperature, °C               -30 to +55               - 20 to +55   - 30 to +55


Transmitter

GT-75

GT-15

Operating frequencies, Hz

273, 526, 1024, 8928

273, 1024, 8928, 32768 (33 k)

Output power, max, W

75

10

Output current, max, А

up to 2.0

up to 0.6

Output voltage, max, V

220

Power supply

VRLA (AMG) rechargeable battery

2 pcs. 6 V 12 Ah

12 V 7 Ah

Operating temperatures, °С

from - 30 to + 55

Overall dimensions, max, mm

275 x 250 x 180

Weight, max, kg

8.5

4.9


Delivery set




STALKER 75-14

STALKER 15-14
Locator STALKER PT-14
1

Headphones
1
Вattery charger 12 V 0.5 A

Battery holder 1 1
Operating Manual for the PT-14 Locator 1 1
Bluetooth-USB adapter 1
1
Transmitter STALKER GT-75 1
Transmitter STALKER GT-15
1
Transmitting frame RP-02 1
Вattery charging adapter 12 V 2.5 A 1 1
Supply cable «12 V» 1
Red and blue cable reel, 10m 2
Connecting lead, 5 m   2
Ground rod, 0.5 m 1
 Ground rod, 0.2 m
 “Crocodile” clip, isolated
2
Operating Manual for the GT-75 and GT-15 Transmitters 1 1
Carry bag for the GT-75 Transmitter accessories

Sunscreen cover
1
Locator bag


Optional accessories:

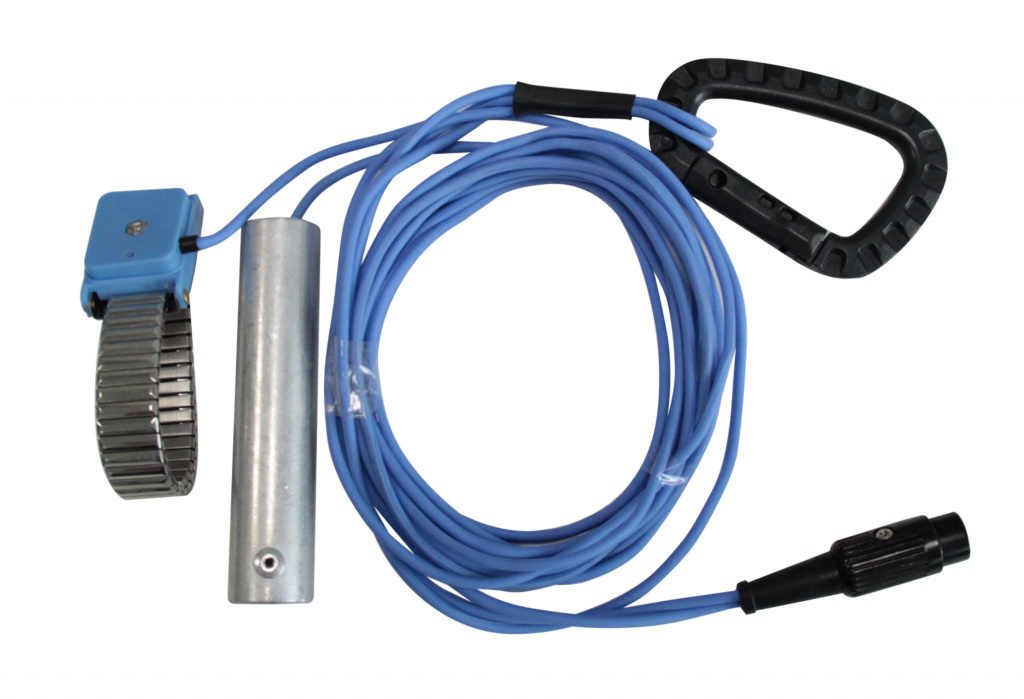

Insulation control non-contact sensor DKI-E
This sensor is used for quick location of insulation faults when the utility is under asphalted area or buries in frozen soil. Two operators are required.
  Датчик ДКИ-Е с браслетом

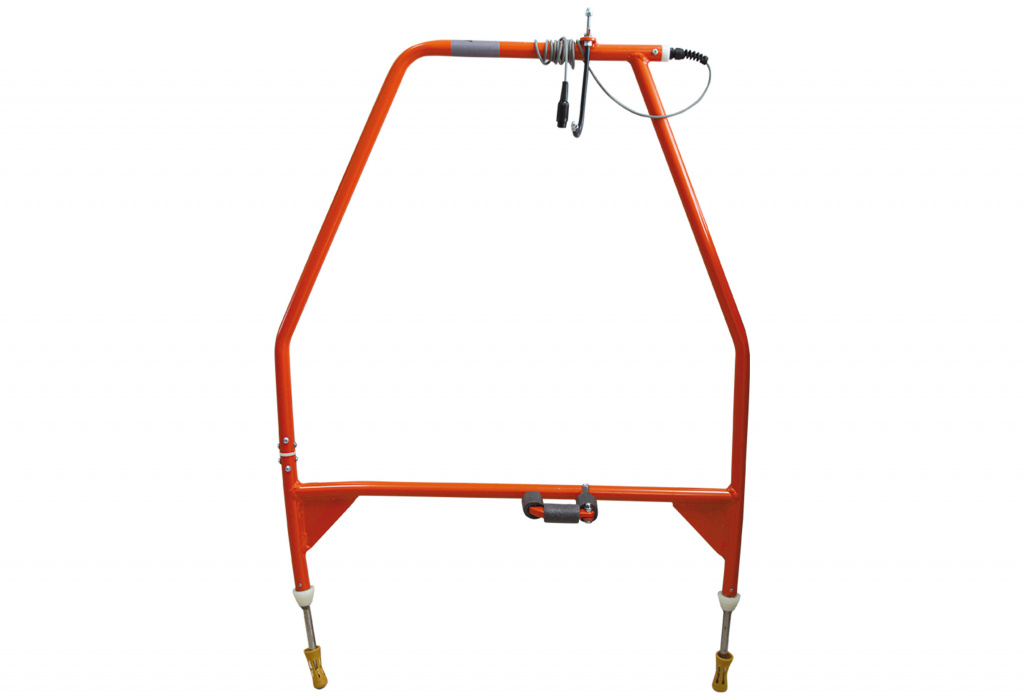

“A-frame” sensor

Allows quick and precise detection of insulation faults.

  А_рамка_с креплением.jpg

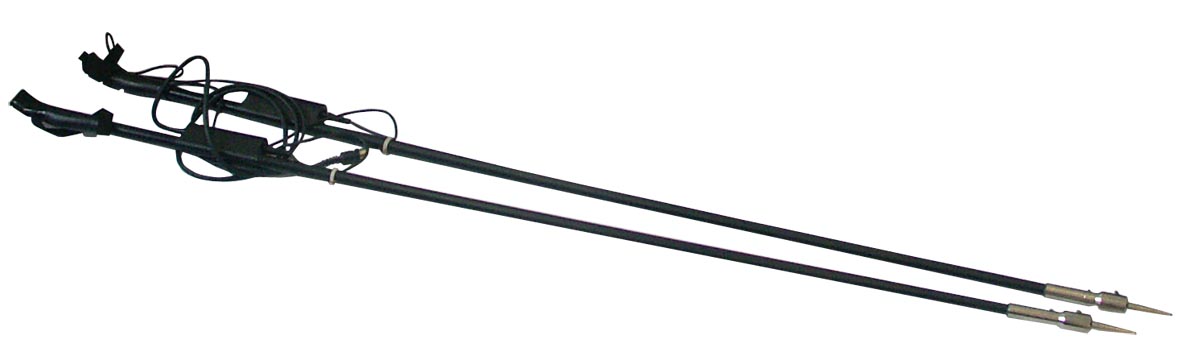

Insulation control contact sensor DKI-02
This sensor is used for insulation fault tracing.

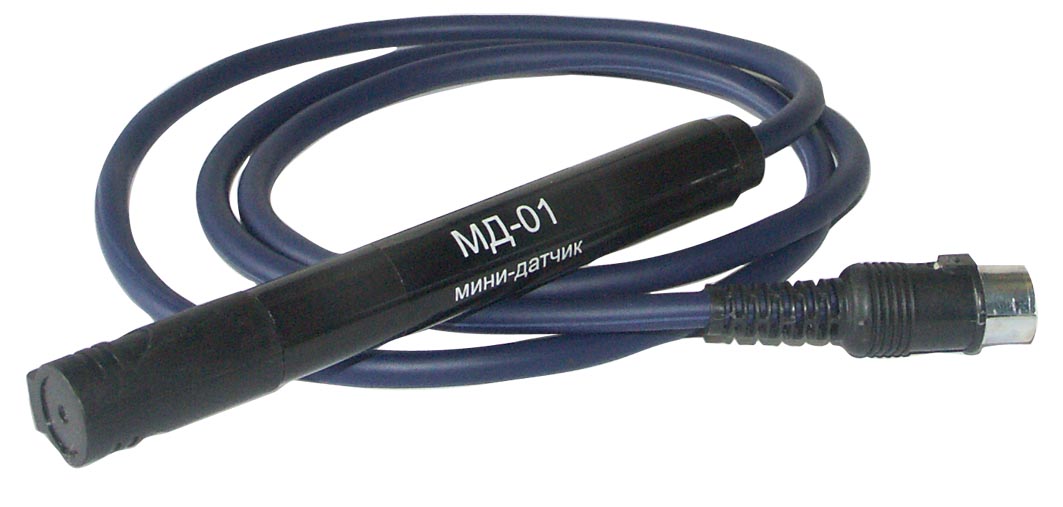

Mini-sensor MD-01

This is intended for detection of target cable (core) in a bundle and locating of cable damages.

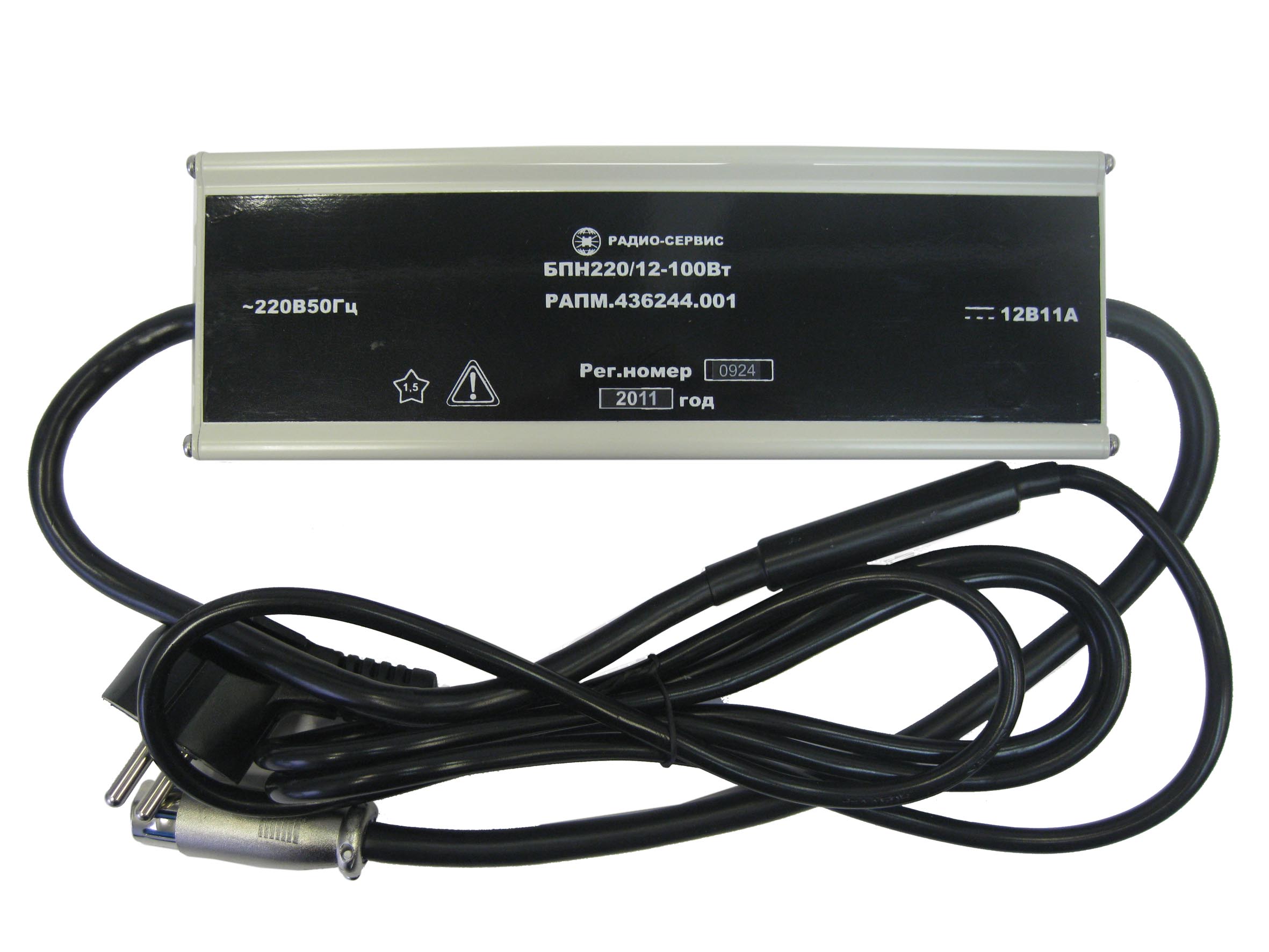

Power supply unit 220/12-100 W

This is used for connection of transmitter to the 220 mains and charging of built-in rechargeable batteries. Maximum output power is 75 W.

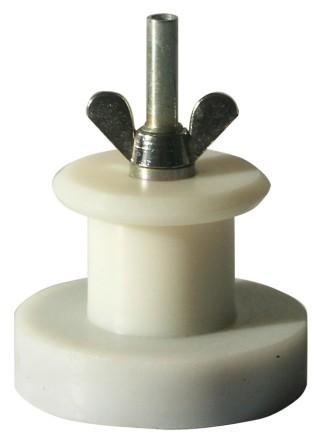

Magnet

Allows connecting the GT-15 and GT-75 Transmitters to target pipeline.

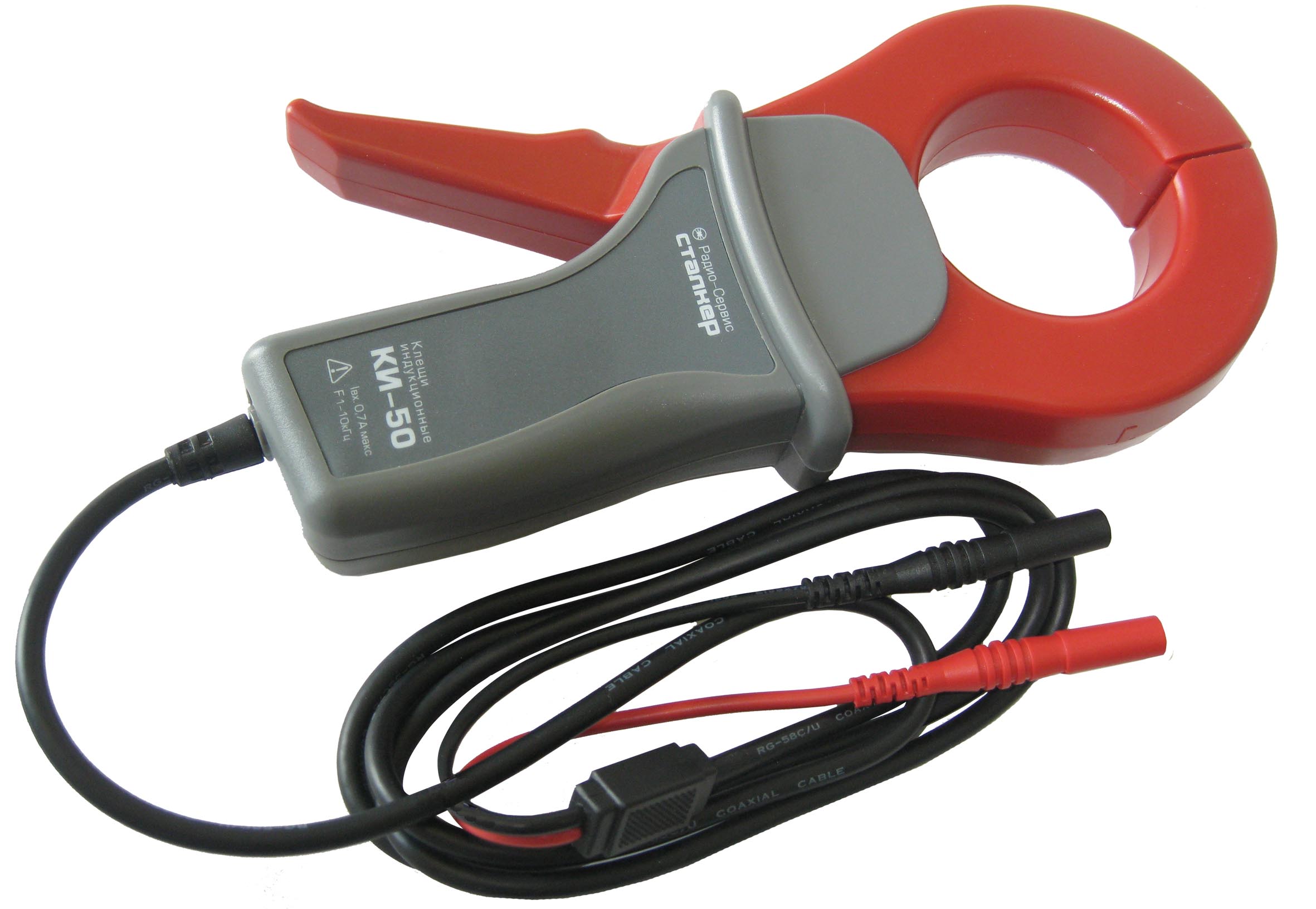

Clamp KI-50

Clamp is intended for application of searching signal from transmitter into target utility, including cables under load.

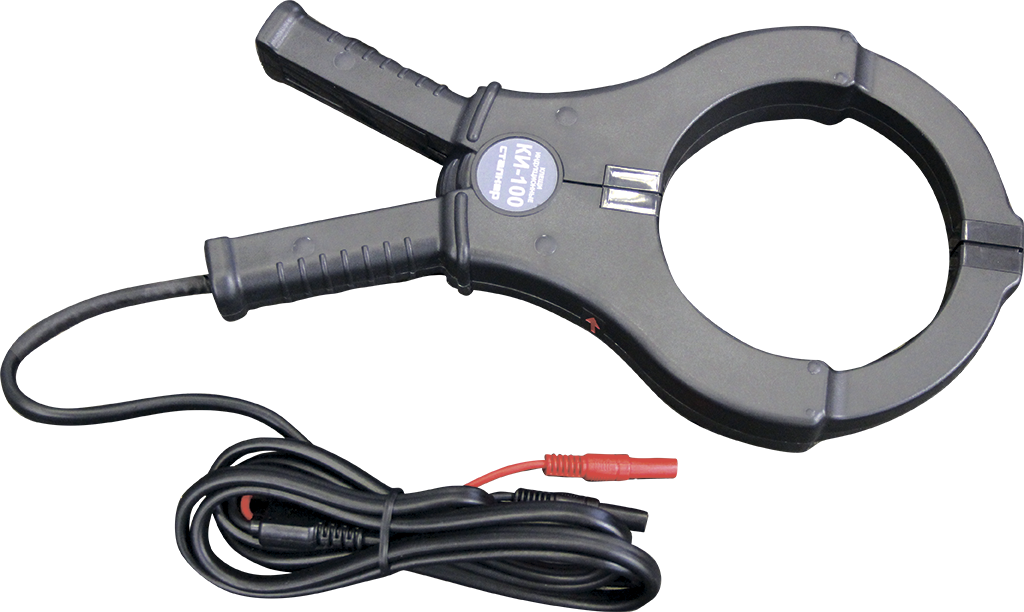

Clamp KI-100
Clamp is used for non-contact application of search signal into target energized or de-energized utility when galvanic connection is impossible.
