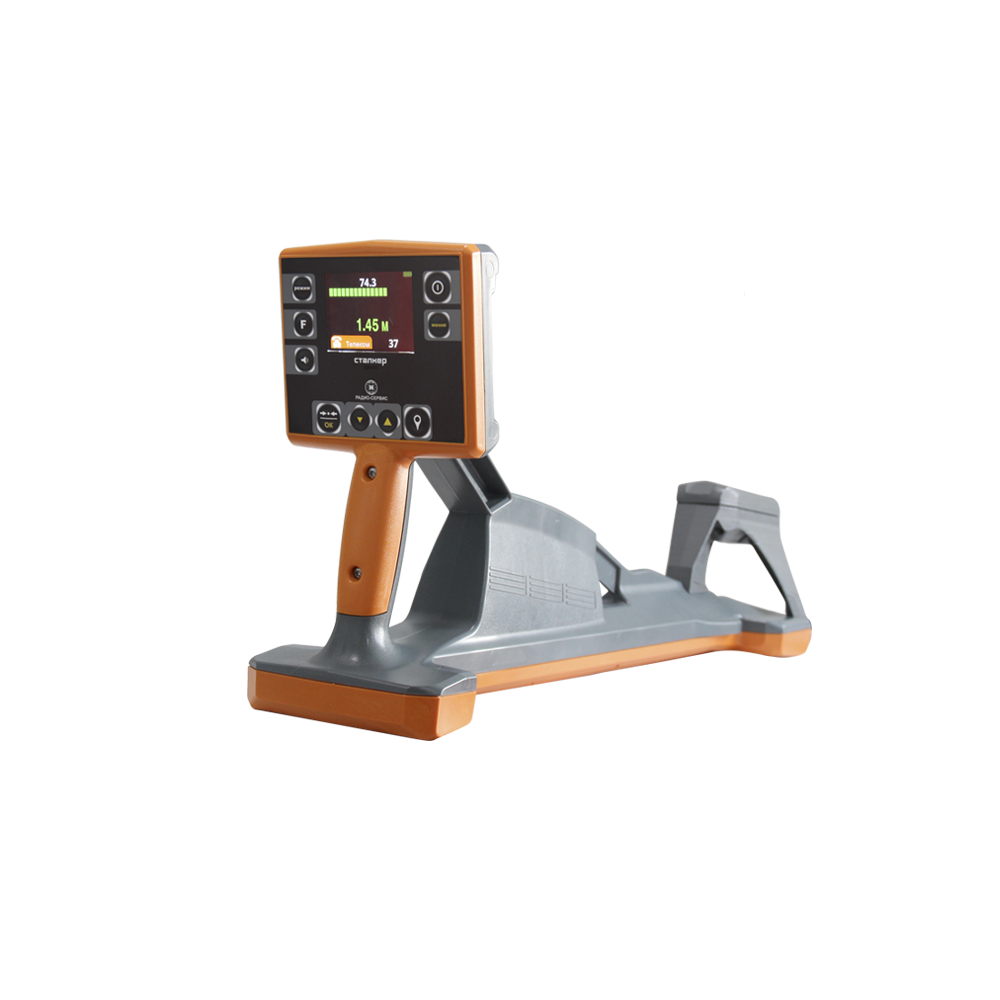

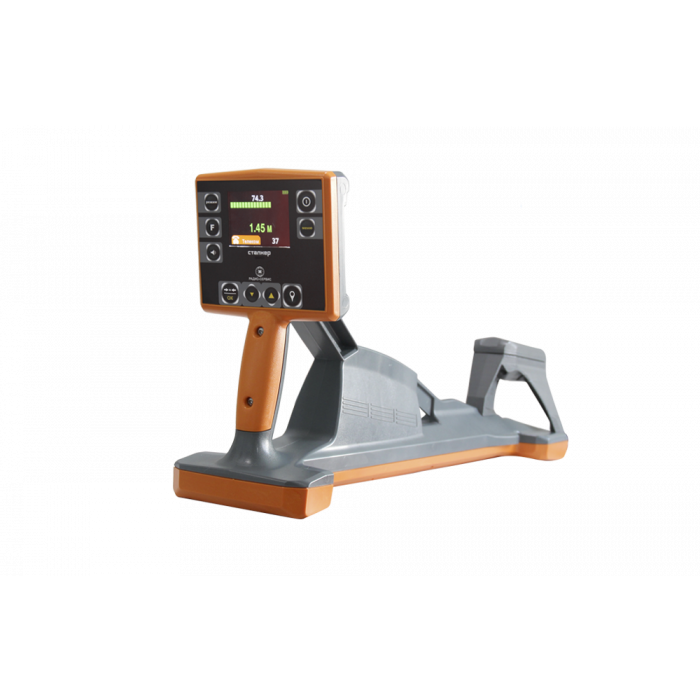

RF Marker Locator STALKER PM-2

This instrument is locating underground utilities by detecting all types of most commonly used RF markers.

Features:

  • Locator detects 8 types of passive and active electronic markers which are used to mark a wide range of underground facilities: cable television networks, telecommunication lines, power supply networks, water supply pipelines, wastewater pipelines, gas pipelines, fiber-optic transmission system, service water;
  • Locator provides depth readings (depending on the marker type - up to 3.0 m);
  • Memory 10,000 data points; Locator provides connection to PC;
  • Locator can be connected to a GPS / GLONASS Logger, which allows for the object locating data to be mapped;

Technical specifications

 1. Common depth of the buried utility electronic markers
(subject to placing in accordance with a manufacturer’s instructions)
Description   Marker diameter   Depth
near-surface markers: 20 mm (0.8’) 0.6 m
ball markers: 114 mm (4.5’)
104 mm (4.1’)
138 mm (5.4’)
1.5-1.8 m
1.5-1.8 m
1.8-2.0 m
disc markers: 133 mm (5.2’)
213 mm (8.4’)
1.5-1.8 m
1.8-2.0 m
full-range markers: 380 mm (15’)
225 mm (8.9’)
2.5-3.0 m
2.3-3.0 m
2. Depth measurement accuracy:        ± (15%+5 cm)
3. Dimensions:
 700 × 300 × 140 mm
4. Weight:    2.0 kg
5. Operating temperature range:
from - 20 °С to + 60 °С
6. Locator requires:
2 x Ni-Mh rechargeable batteries 6 V, 2 A / h
or 8 x 1.5 V AA size disposable batteries
7. Ingress protection
IP54
